LINUM EX

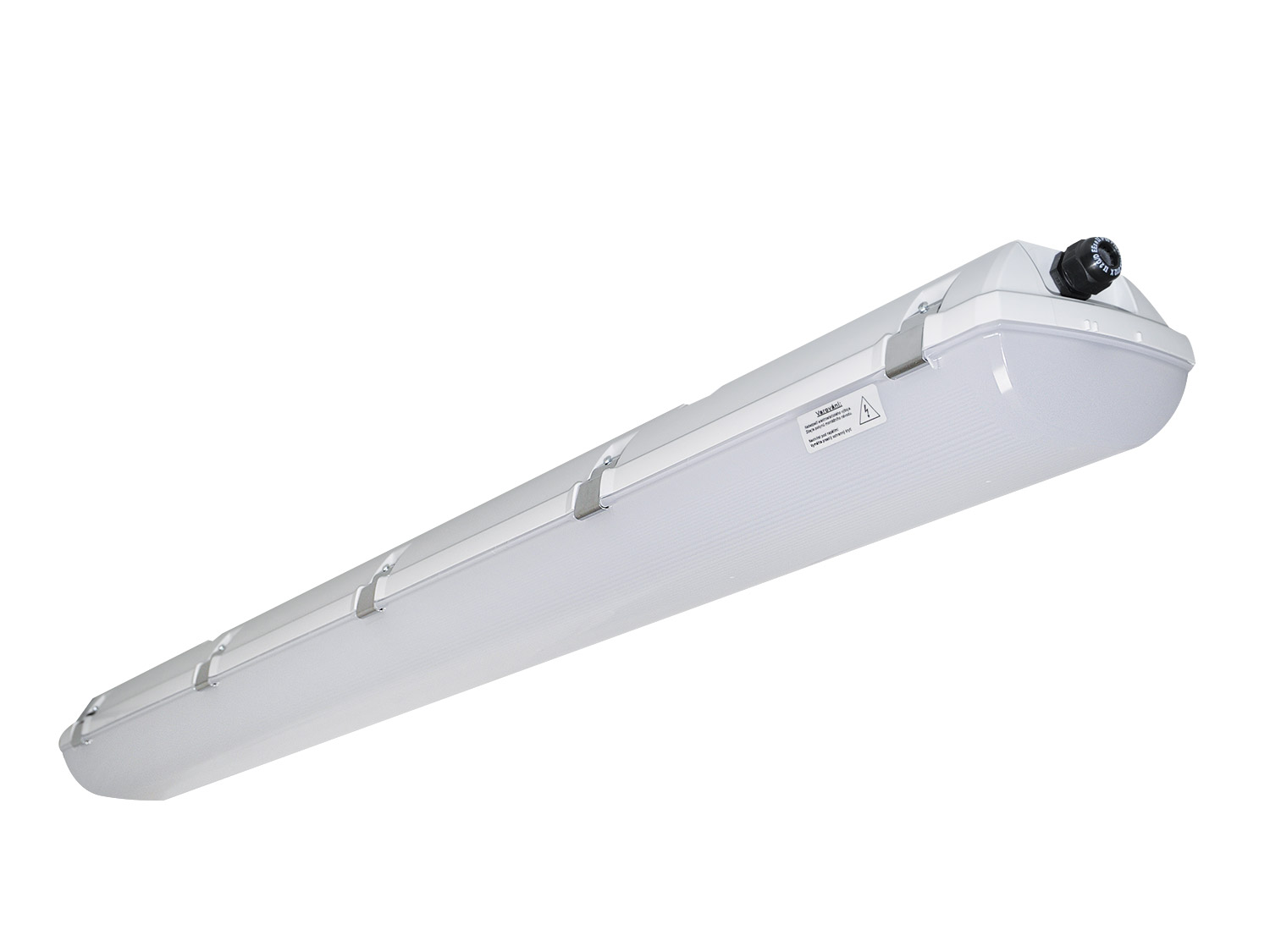

Plastic industrial LED light fitting intended for environment with risk of explosion group II, category 3 (zone 2, 22), with diffuser made of transparent polycarbonate.

The light fitting is suitable for the environment with a danger of explosion of gases, dust and combustible fumes. The light fittings meet the requirements of Government Decree 116/2016 Coll. and European Community Directive No.2014/34/EU.

The light fitting is certified ATEX for the environment:

II 3G Ex ec IIC T6 Gc
II 3D Ex tc IIIC T85°C Dc IP66

The basic requirements for safety and health protection are secured by the verification of conformity with the standards according to ČSN EN 60079-15,
ČSN EN 60079-0 and ČSN EN 60079-31.

The light fitting is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have the increased resistance against deformation and impact.

Description

Features:

From 23W to 71W
IP66 and IK10
Maximum ambient temperature: ta = 60 °C
Lifetime: 50,000 hours / L80B20
Body: grey polycarbonate (PC), UV stable, impact-resistant
Standard model – CRI > 80: 4000 K
Certification: CB, EAC, CE
Certification ATEX AR19ATEX004
The watt and lumen values can, in accordance with valid standards, vary by ± 7,5 %

Technical information:

Diffuser: translucent polycarbonate (PC), UV stable, impact-resistant

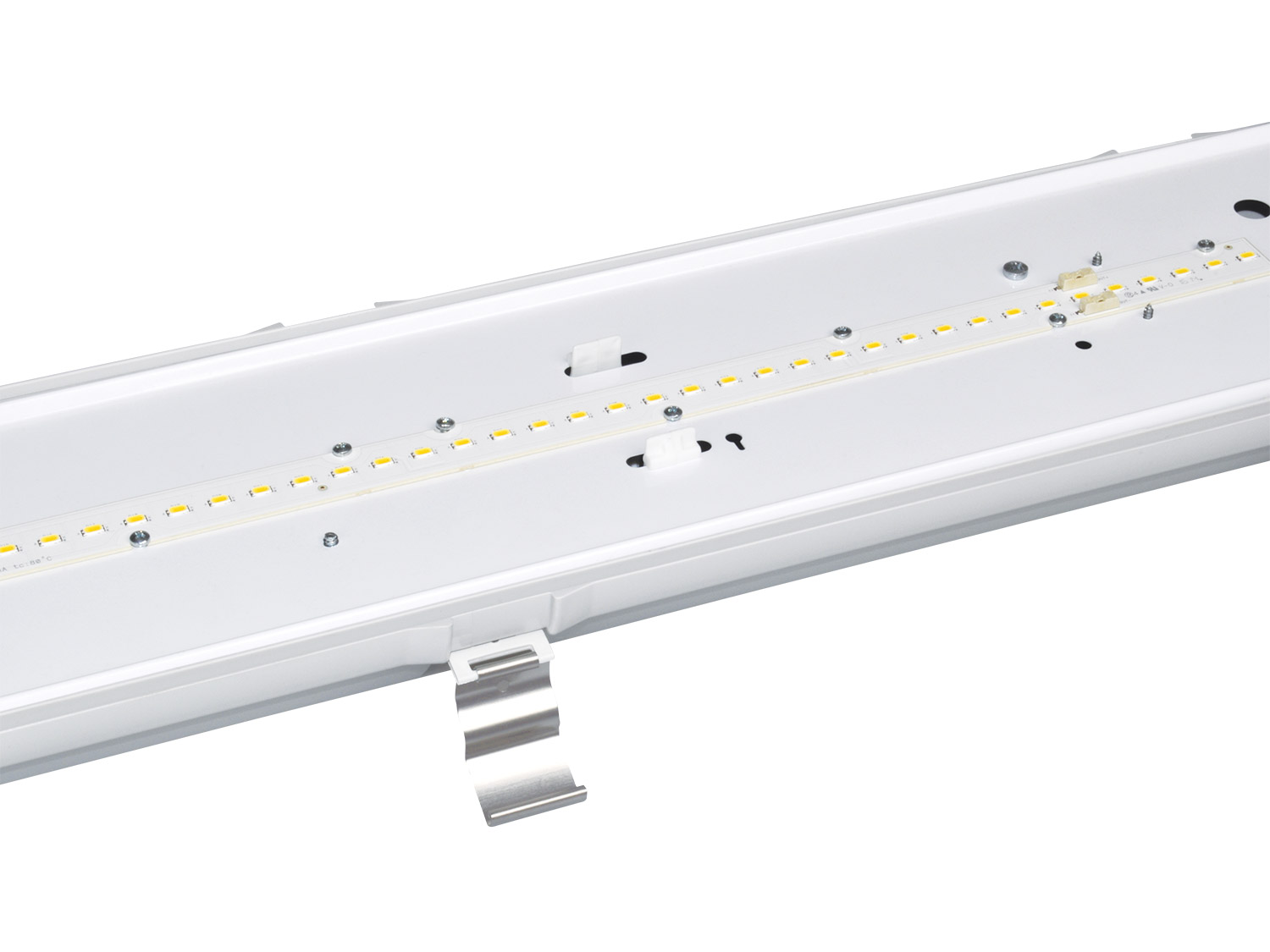

Reflector: steel sheet, white color (RAL 9003)

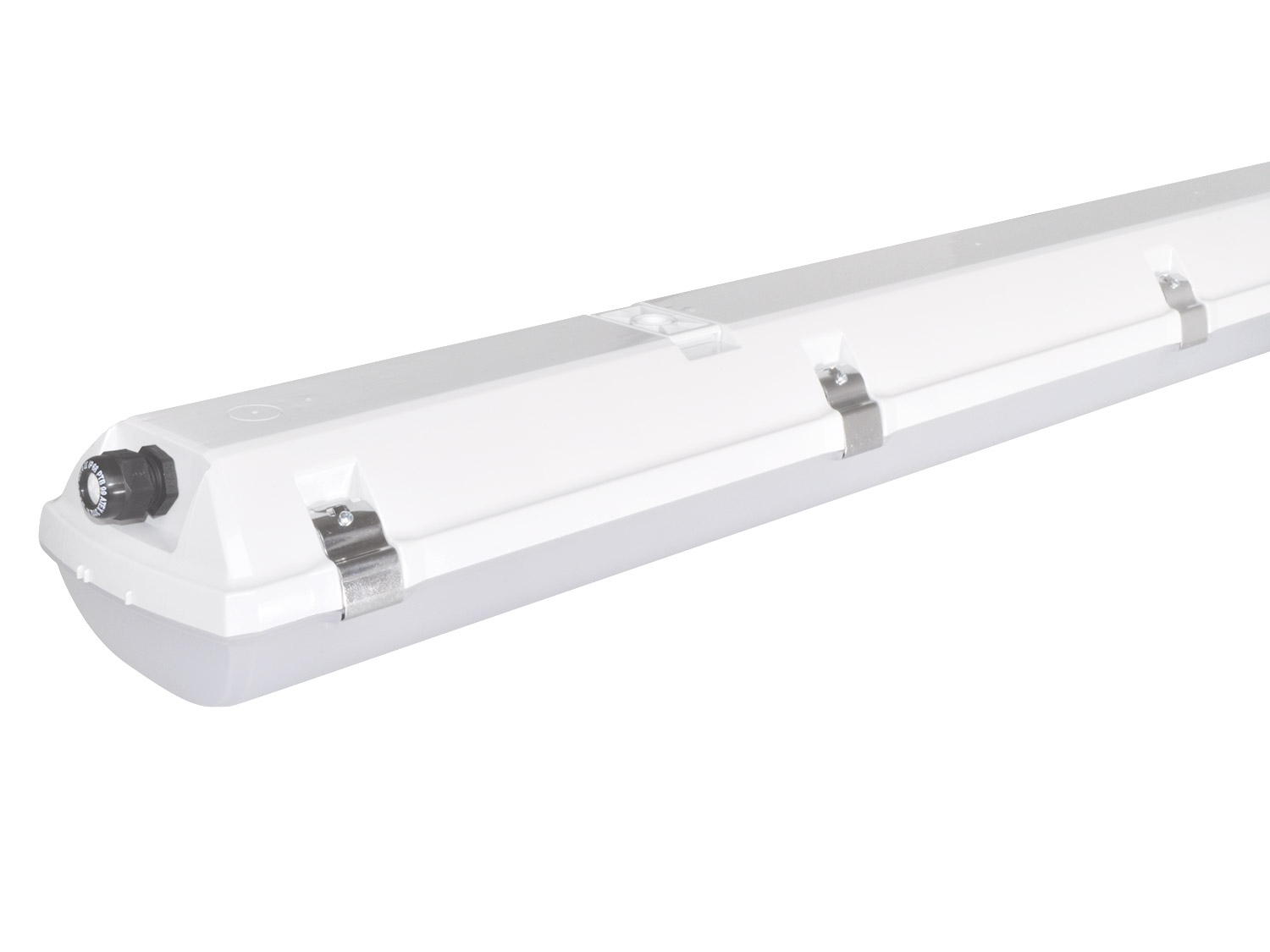

Clips: stainless steel + polyamide + 15 % glass fiber
Cable glands: screwed M20 × 1,5 ATEX
Distance part: polyamide + 10 % glass fiber, it is used for reflector attachment during assembly
Terminal block: screwless, three-pole incl. earthling tape & screw for a perfect connection (basic version)

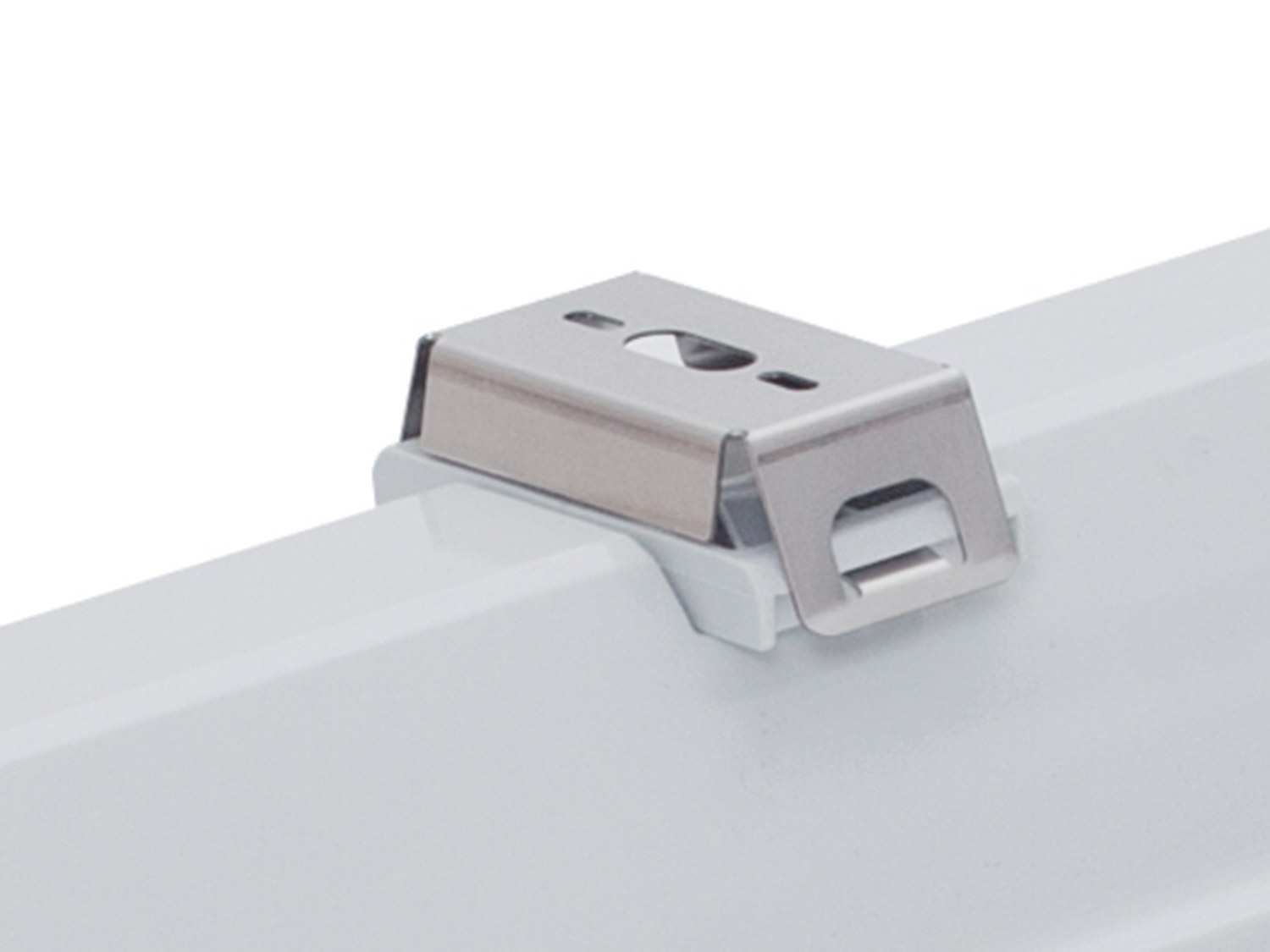

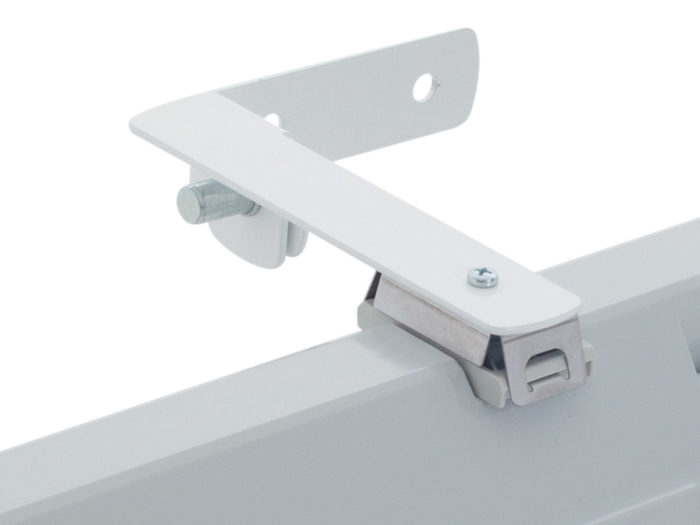

Installation options: attachment with the use of side hangers to the wall/ directly to a ceiling or a wall with the use of screws and stainless brackets/ suspension with the use of stainless hooks

Areas of application:

Industrial: Heavy industry

Type	Ta. Max	Luminous flux light fitting (lm)	Power (W)	Efficacy (lm/W)	Net weight (kg)	Luminaire length (mm)
LINUM Ex 3200	60	3330	23	145	3.2	1272
LINUM Ex 4400	55	4660	31	150	3.3	1272
LINUM Ex 4000	60	4150	27	154	4.1	1572
LINUM Ex 5500	55	5810	38	153	4.2	1572
LINUM Ex 6400	55	6710	43	156	3.4	1272
LINUM Ex 8800	55	9340	60	156	3.5	1272
LINUM Ex 8000	60	8310	54	154	4.3	1572
LINUM Ex 11000	55	11080	71	156	4.4	1572
