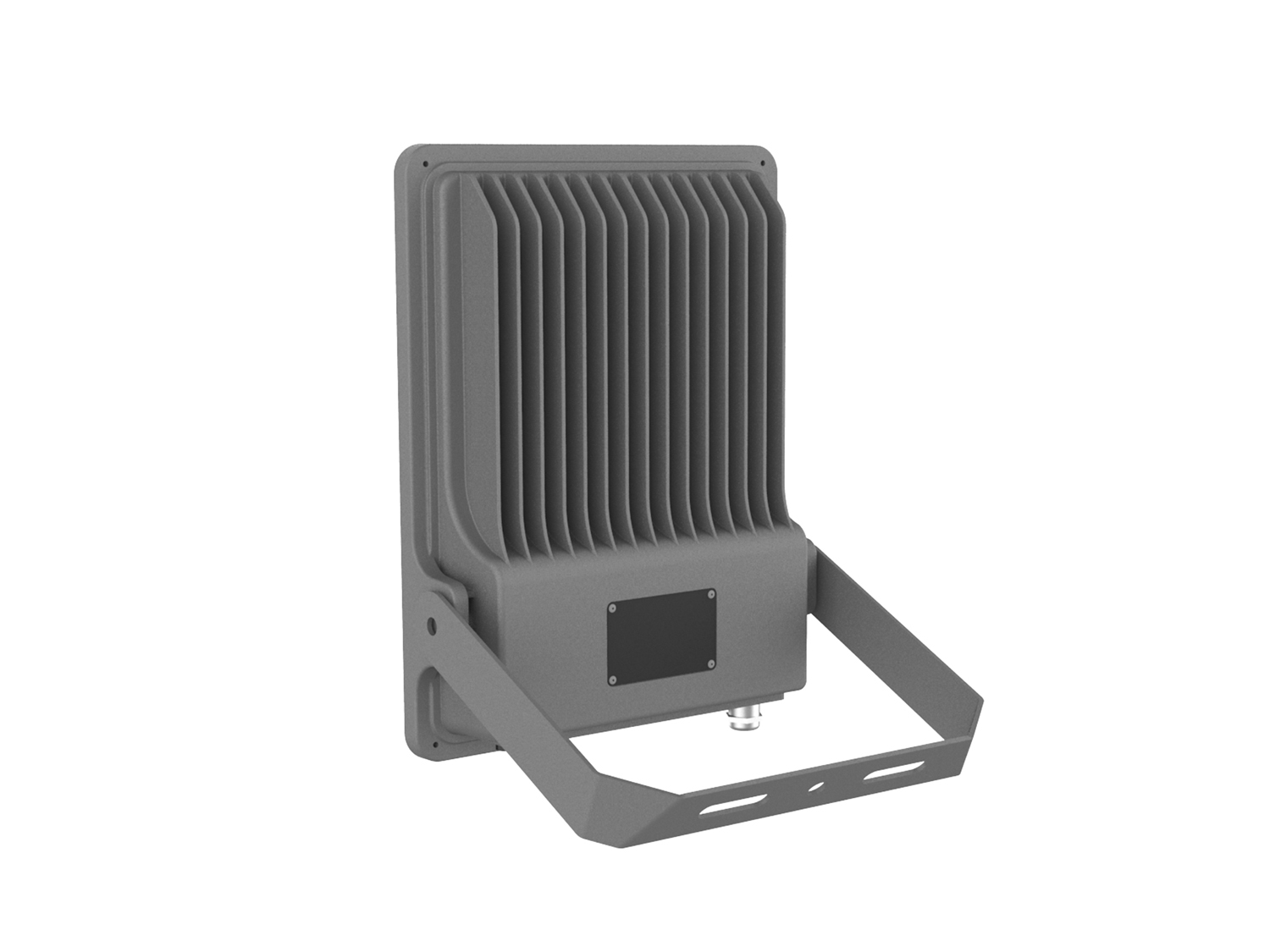

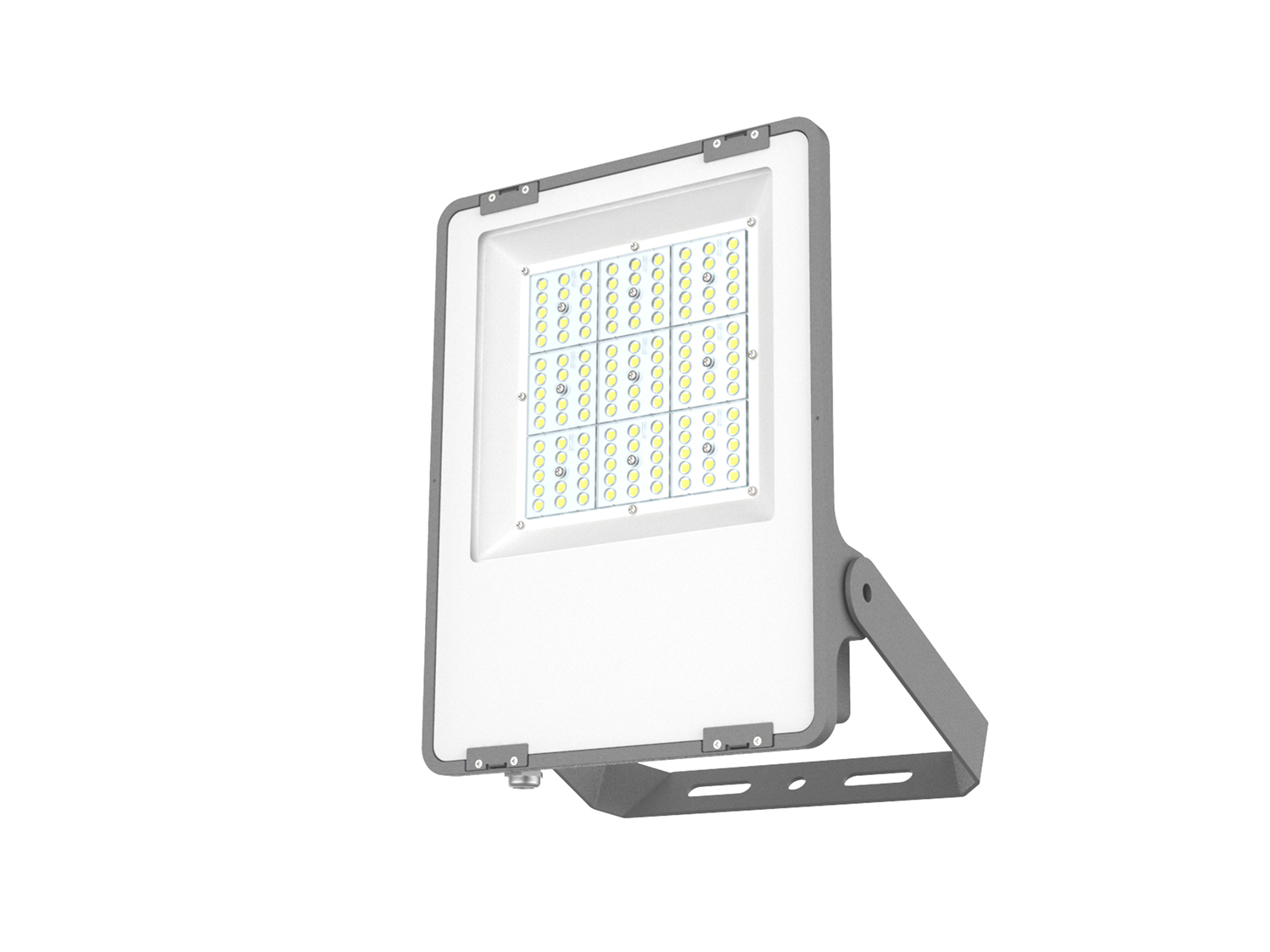

T20 SERIES

The T20 Series is an ECO floodlight series with full range of wattage and light distribution for multiple applications.

High quality workmanship, state-of-the-art lighting technology and a high IP67 protection rating make the floodlight family the first choice for standard lighting tasks outdoors, while simultaneously ensuring economical, low-maintenance and energy-efficient lighting solutions. It can also be used in street lighting with slip fitter mounting accessory.

Area lighting Sports facilities Industry Agricultural

Description

Features:

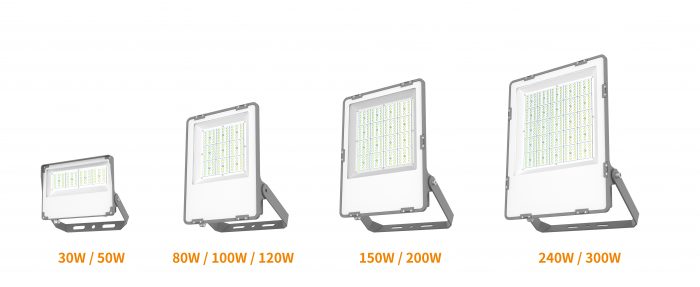

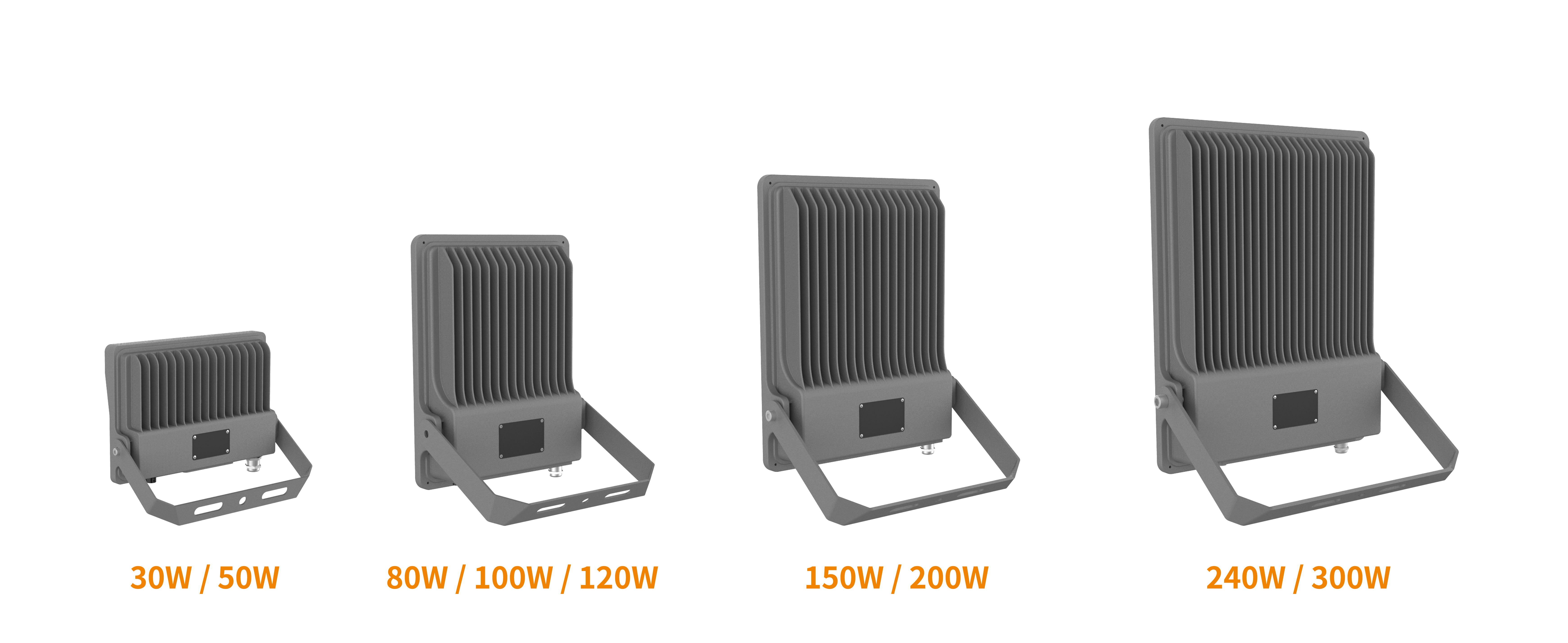

  • From 30W to 300W
  • IP67 & IK08
  • Operating temperature range of -30°C to 45°C.
  • Lifetime: 80,000 hours / L70B10
  • Body: Die-cast aluminum
  • Variety of different beam angles from sport to billboard lighting
  • Multiple installation options – as floodlight or street light pole arm
  • Also, suitable as Uplight
  • The watt and lumen values can, in accordance with valid standards, vary by ± 7 %

Areas of application:

  • Industrial: Factories/ Heavy industry/ Warehouses
  • Infrastructures: Stations and terminals
  • Agriculture: Farms, stables/ Mills, granaries
  • Sports grounds: Indoor swimming pools/ Outdoor sports grounds
  • Street lights: Residential areas/ Highways
  • Area lighting: Parking lots/ General area lighting/ Airports and sea ports
  • Billboard illumination

Name Ta. Max Luminous flux light fitting (lm) Power (W) Efficacy (lm/W) Net weight (kg) Housing
T20-30W 45 4200 30 140 2.3 S
T20-50W 45 7000 50 140 2.3 S
T20-80W 45 11200 80 140 5.2 S
T20-100W 45 14000 100 140 5.2 S
T20-120W 45 16800 120 140 5.2 S
T20-150W 45 21000 150 140 7 M
T20-200W 45 28000 200 140 7 M
T20-240W 45 33600 240 140 10.2 L
T20-300W 45 42000 300 140 10.2 L
