FORNAX NB

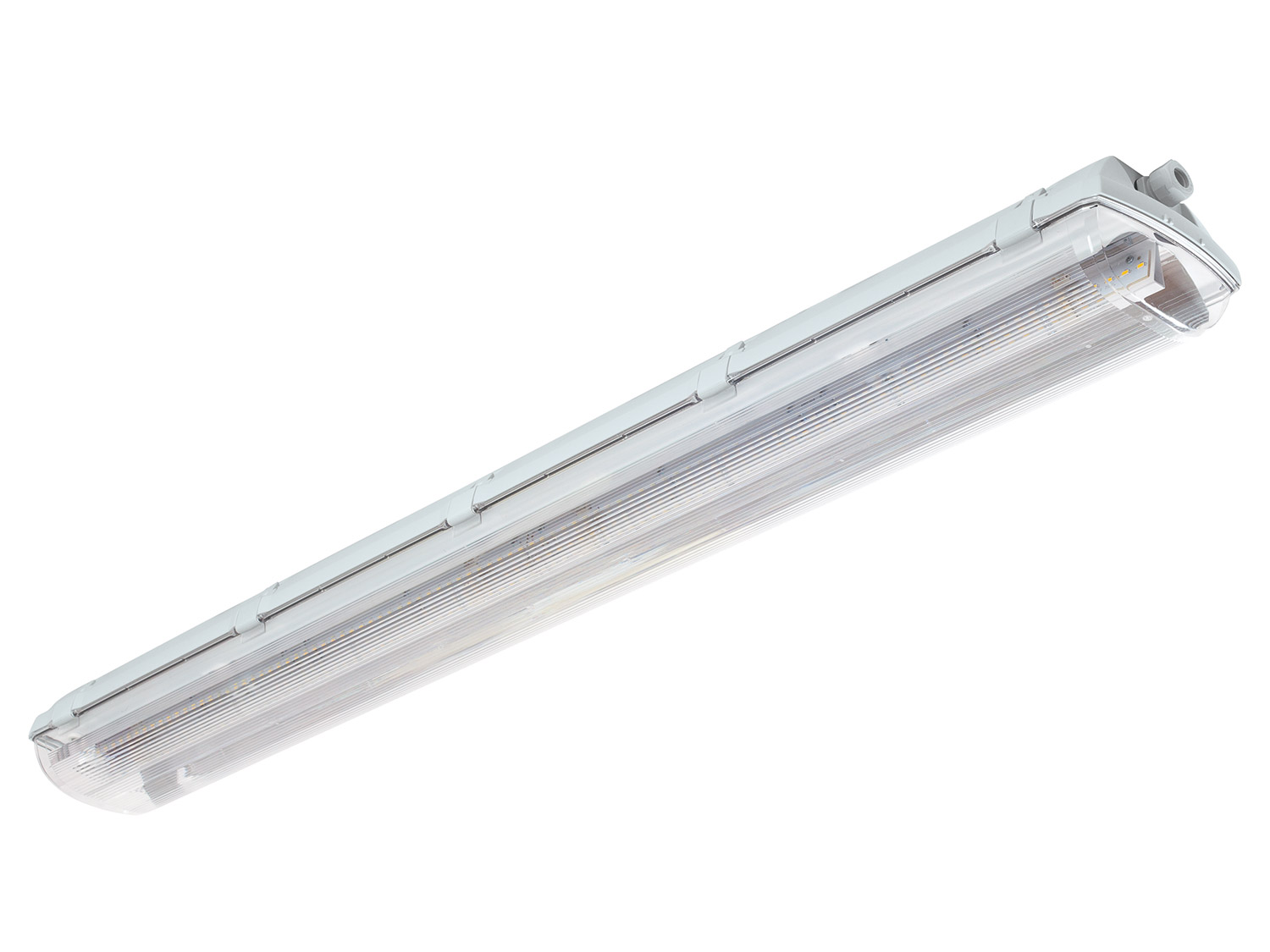

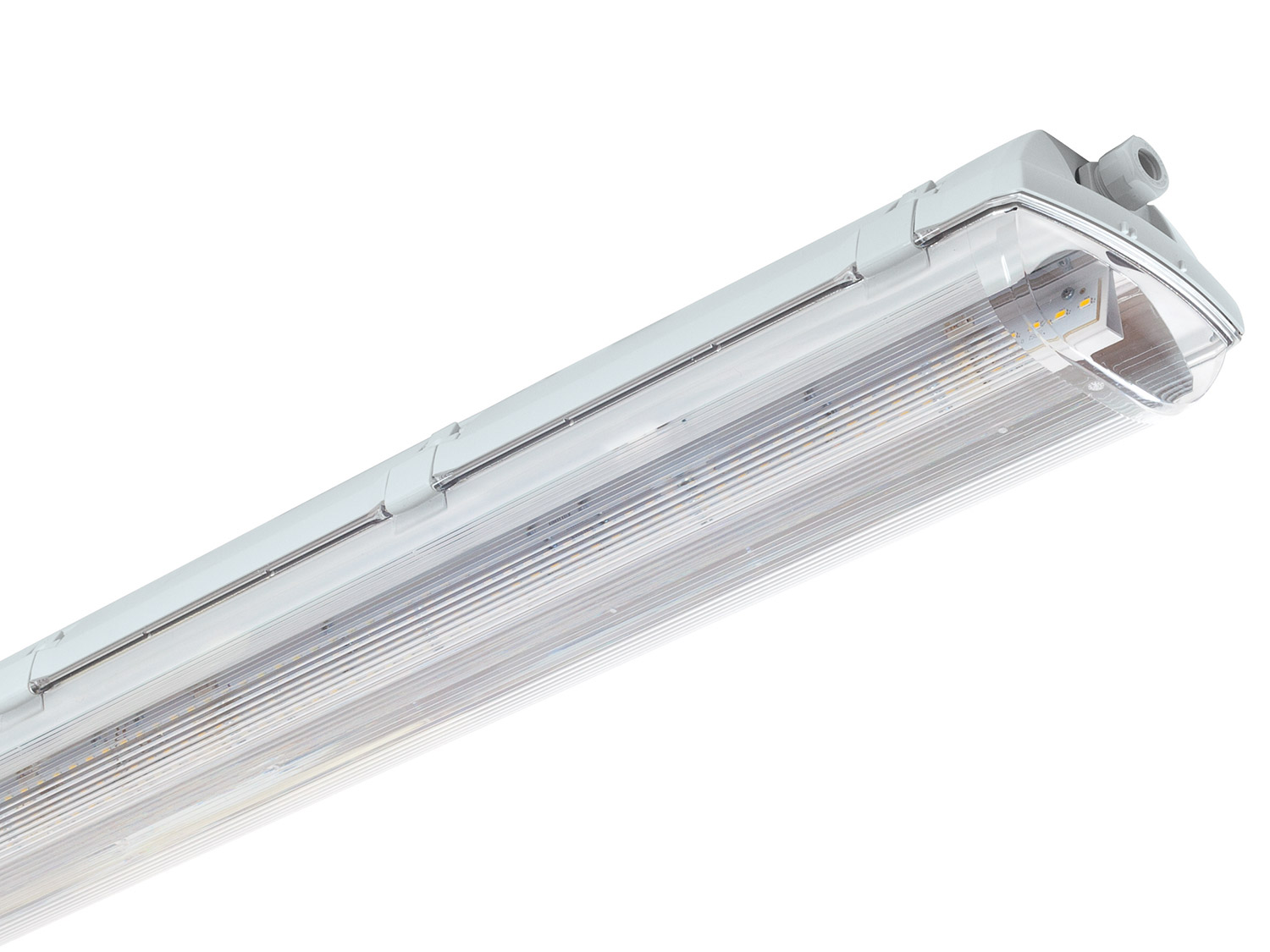

Plastic industrial LED light fitting suitable for rack aisle ways with high ceilings, with diffuser made of translucent polycarbonate.

The light fitting with narrow emitting characteristics is suitable to illuminate storage rack lanes and narrow spaces with high ceilings. Its assembly height is 10-15 m.

The light fitting is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have the increased resistance against deformation and impact.

Description

Features:

From 51W to 104W
IP66 and IK10
Maximum ambient temperature: ta = 40 °C,
Lifetime: 50,000 hours / L90B10
Standard model – CRI > 80: 4000 K
Body: grey polycarbonate with Al coolers (PC Al), UV stable, impact-resistant
Certification: ENEC, CB, HACCP, CE
The watt and lumen values can, in accordance with valid standards, vary by ± 7,5 %

Technical information:

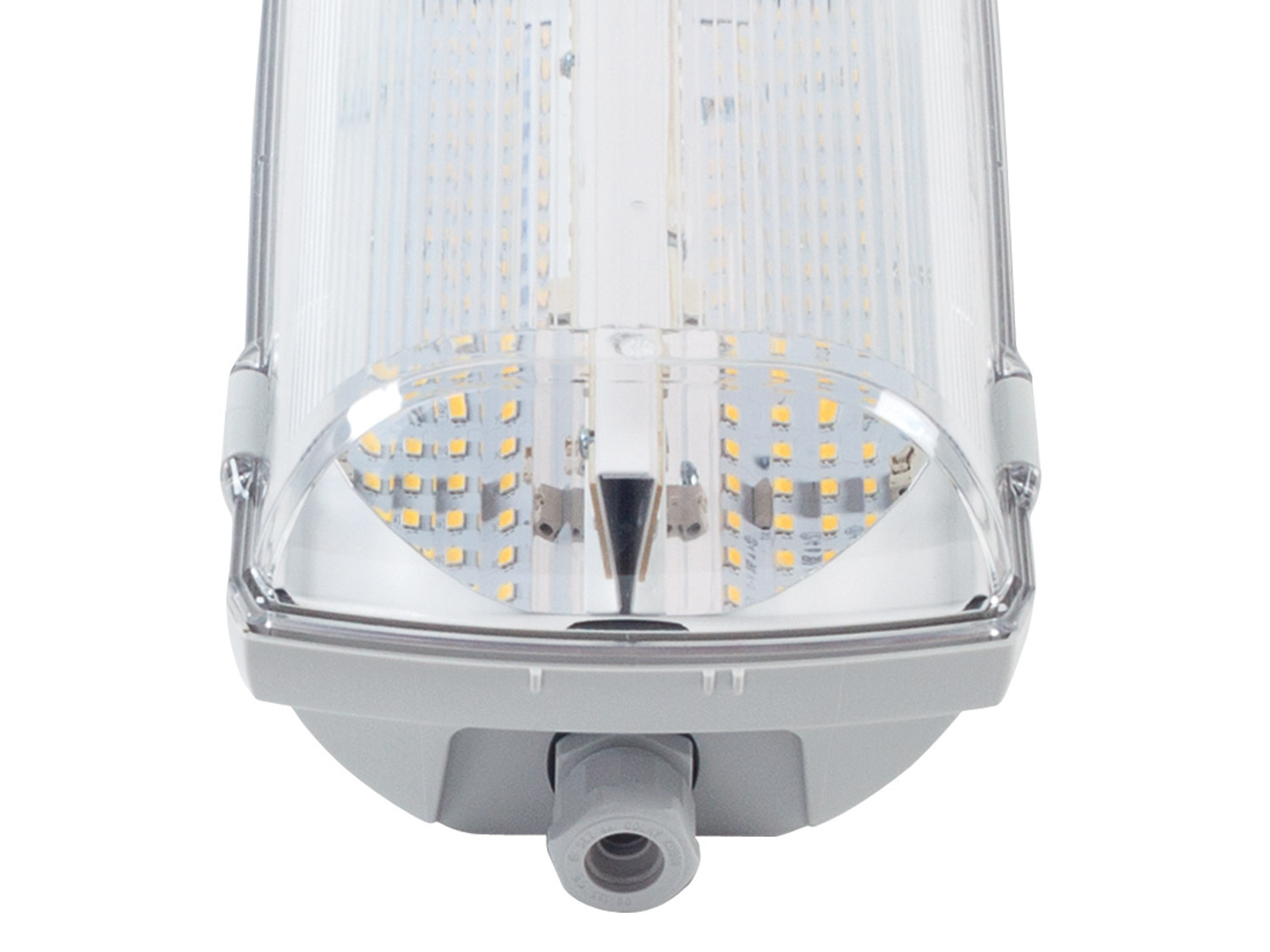

Diffuser: translucent polycarbonate (PC), UV stable, impact-resistant

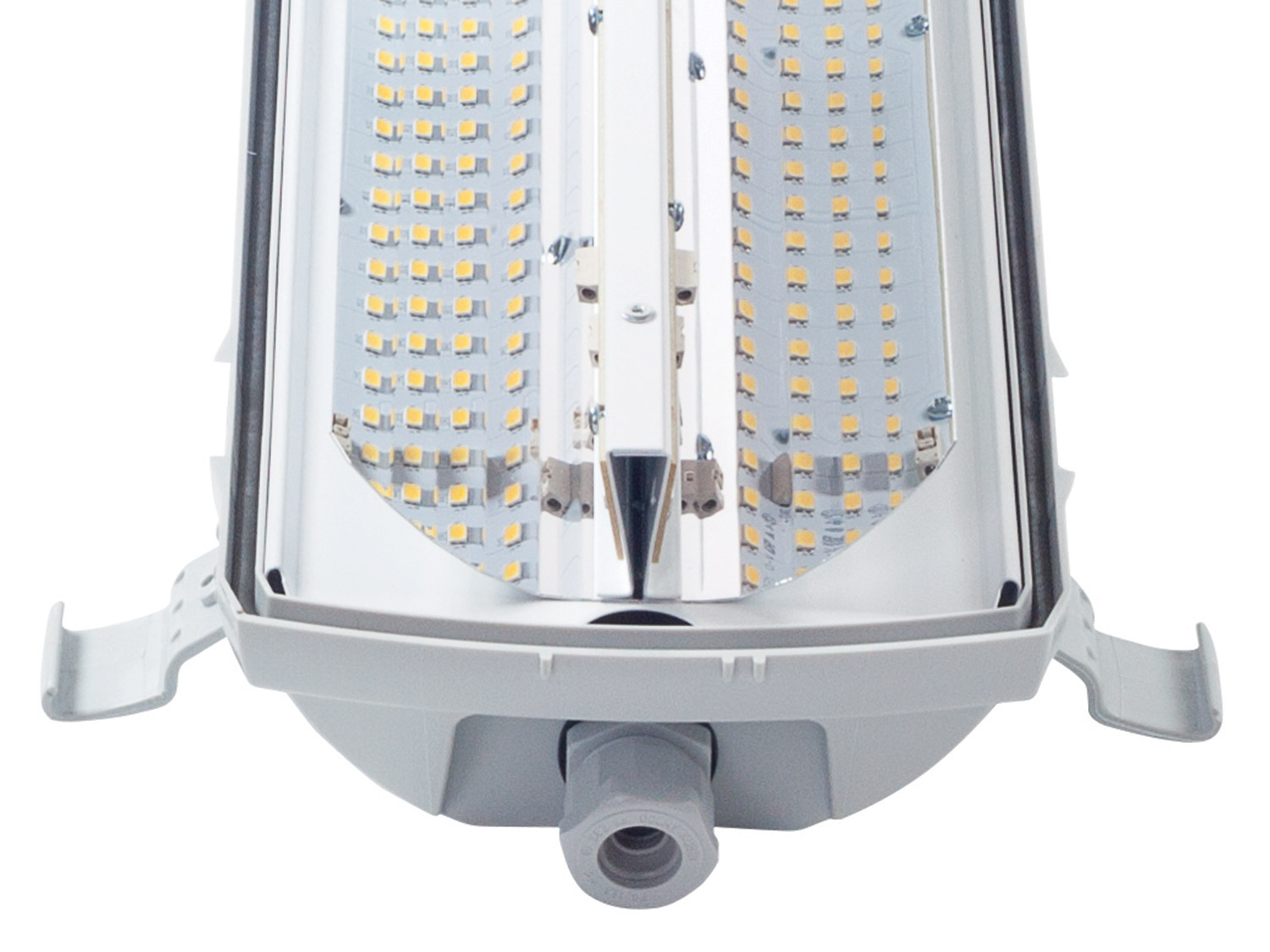

Reflector: parabolic polished aluminum with narrow emitting characteristics

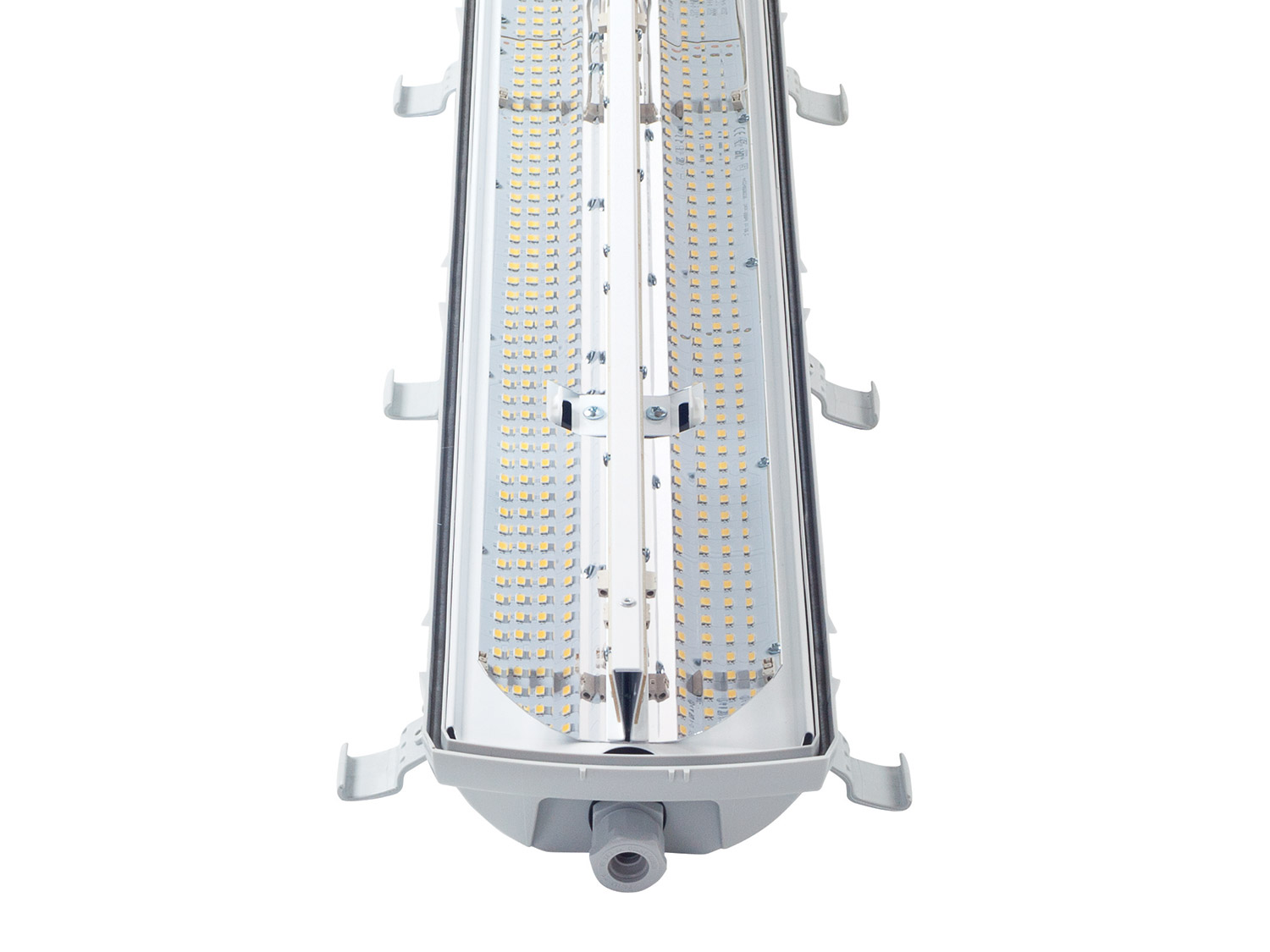

Clips: polyamide + 15 % glass fiber or stainless steel + polyamide
Sealing: polyurethane (PUR), foamed body groove
Cable glands: screwed PG 13,5
Distance part: polyamide + 10 % glass fiber
Terminal block: screwless, three-pole (basic version)

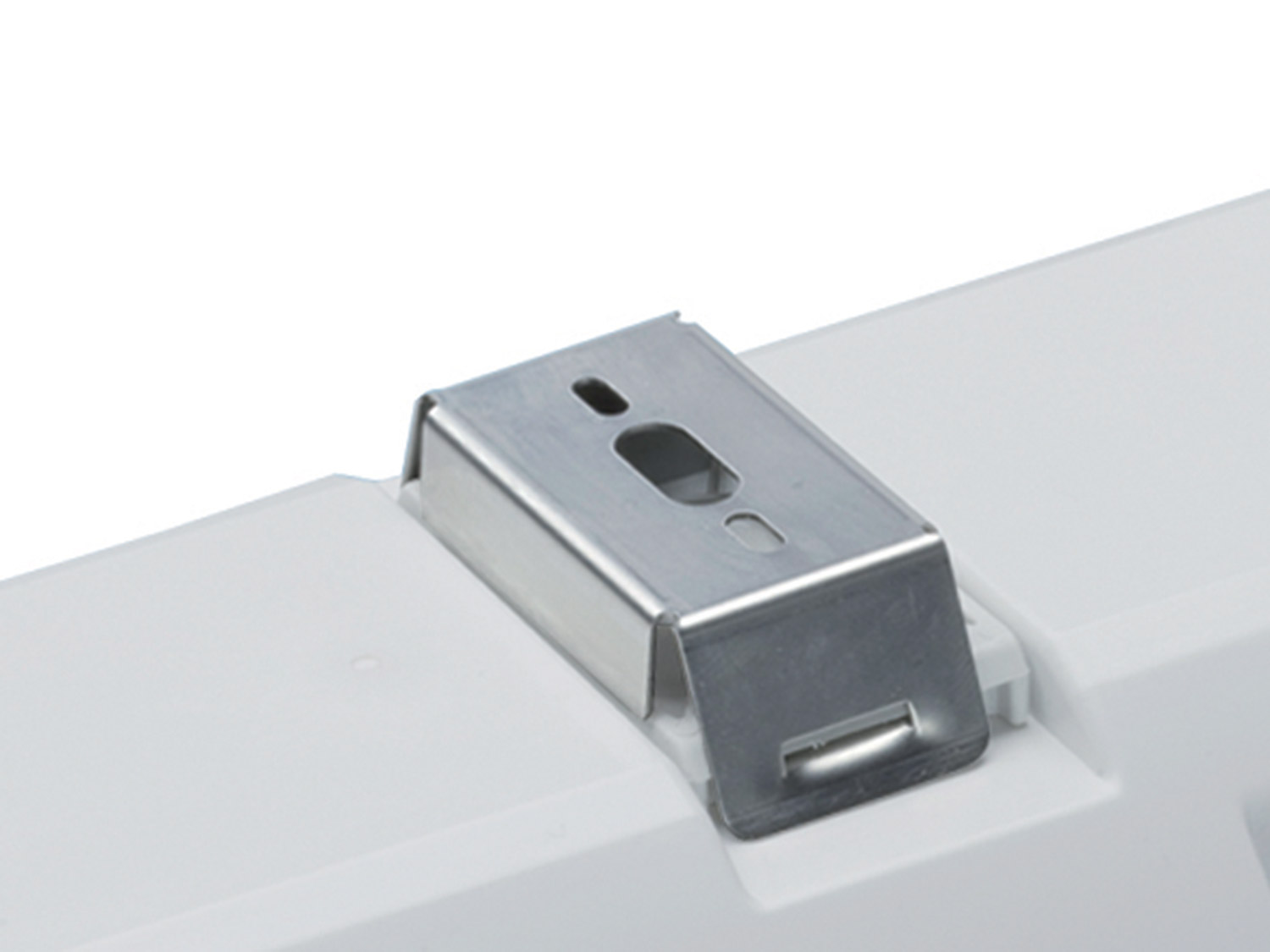

Installation options: directly to a ceiling or a wall with the use of screws and stainless brackets/ suspension with the use of stainless hooks

Areas of application:

Industrial: Factories/ Warehouses/ Food industry
Indoor: Commercial lighting
Infrastructures: Stations and terminals
Agricultural: Farms and stables/ Mills and granaries

Type	Ta. Max	Luminous flux light fitting (lm)	Power (W)	Efficacy (lm/W)	Net weight (kg)	Luminaire length (mm)
FORNAX NB 8800	40	7320	51	144	3.3	1172
FORNAX NB 12800	30	11760	84	140	3.3	1172
FORNAX NB 11000	40	10120	71	143	3.9	1452
FORNAX NB 16000	30	14740	104	142	3.9	1452
