FORNAX SENSOR

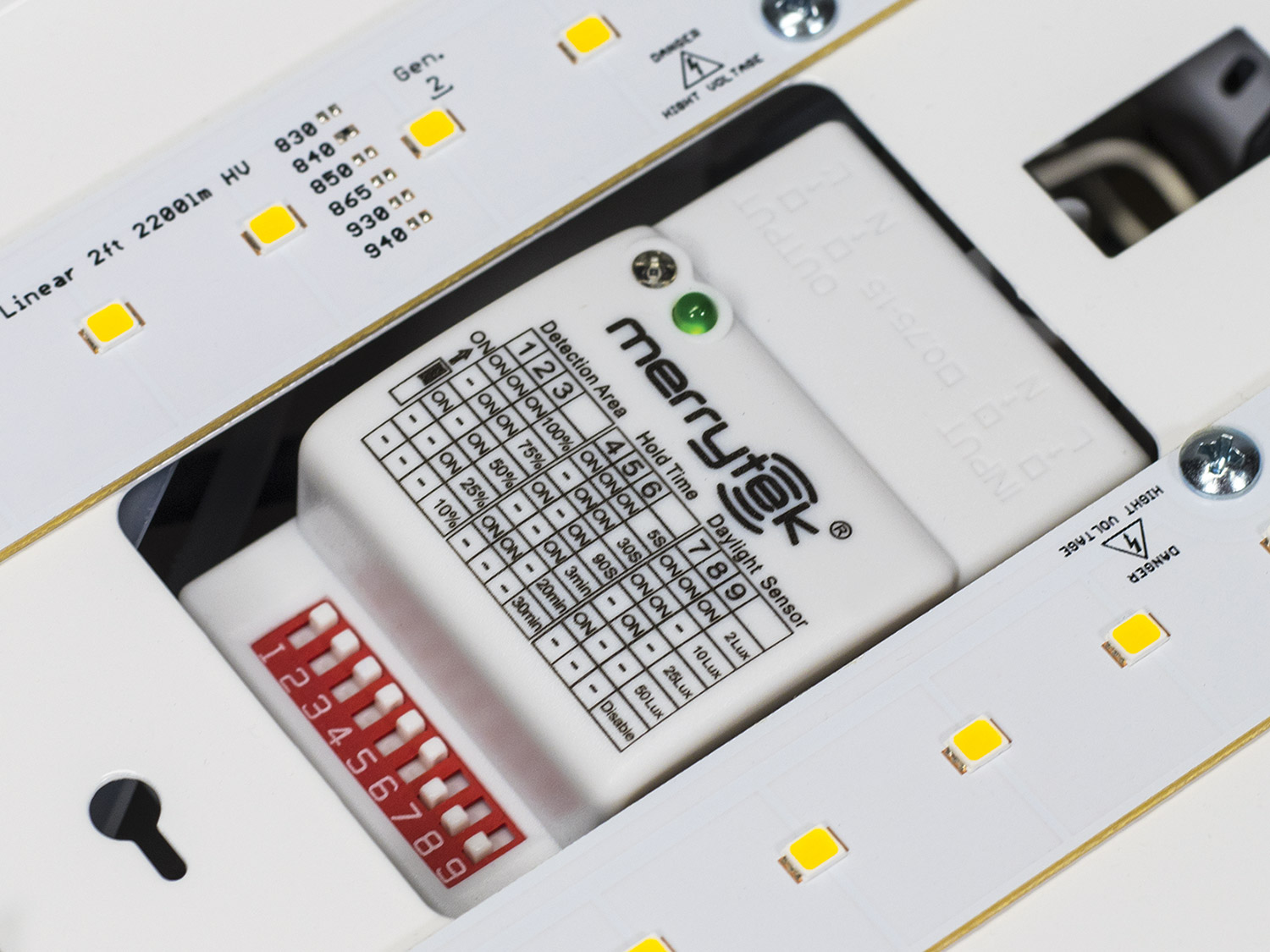

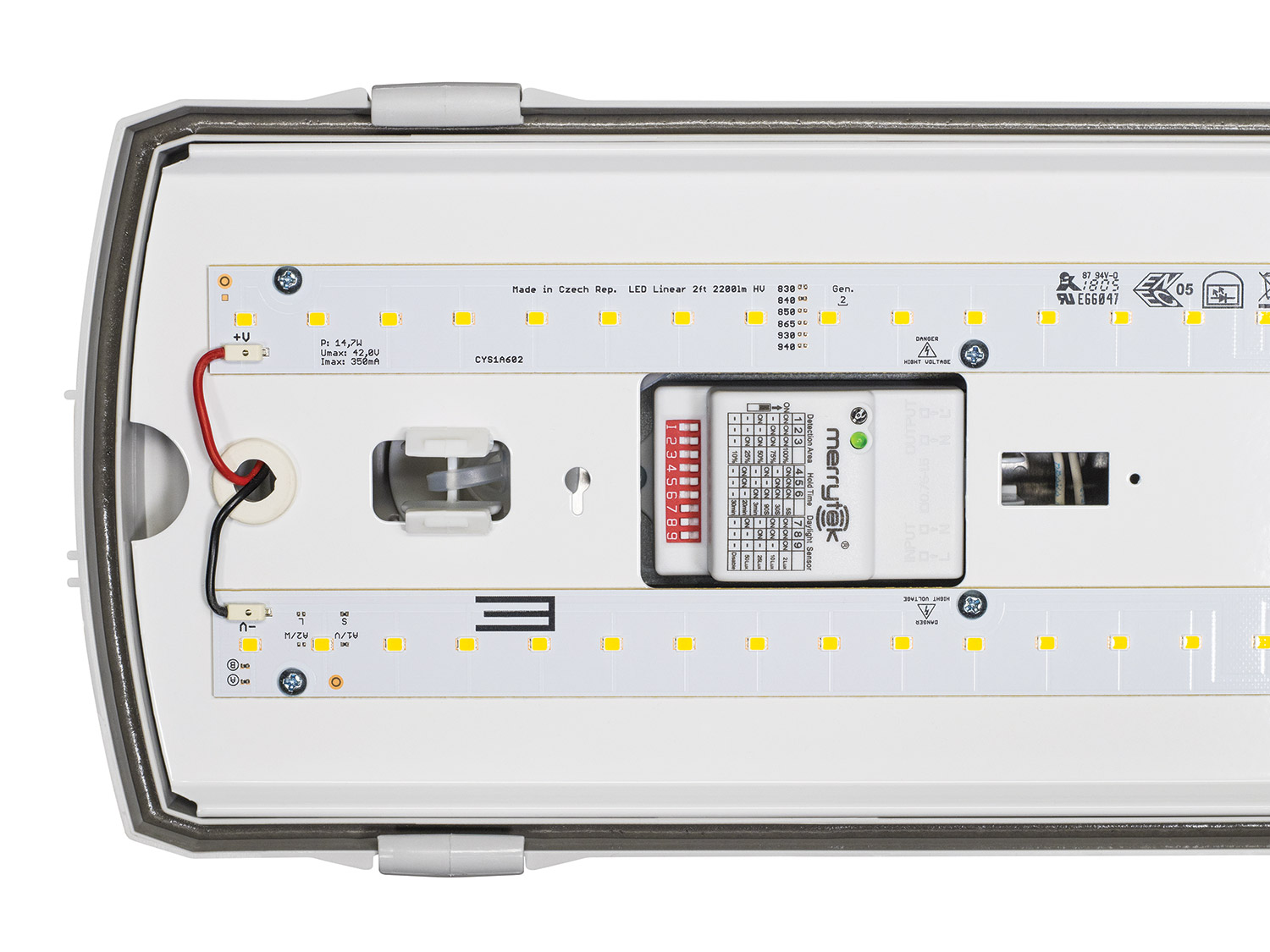

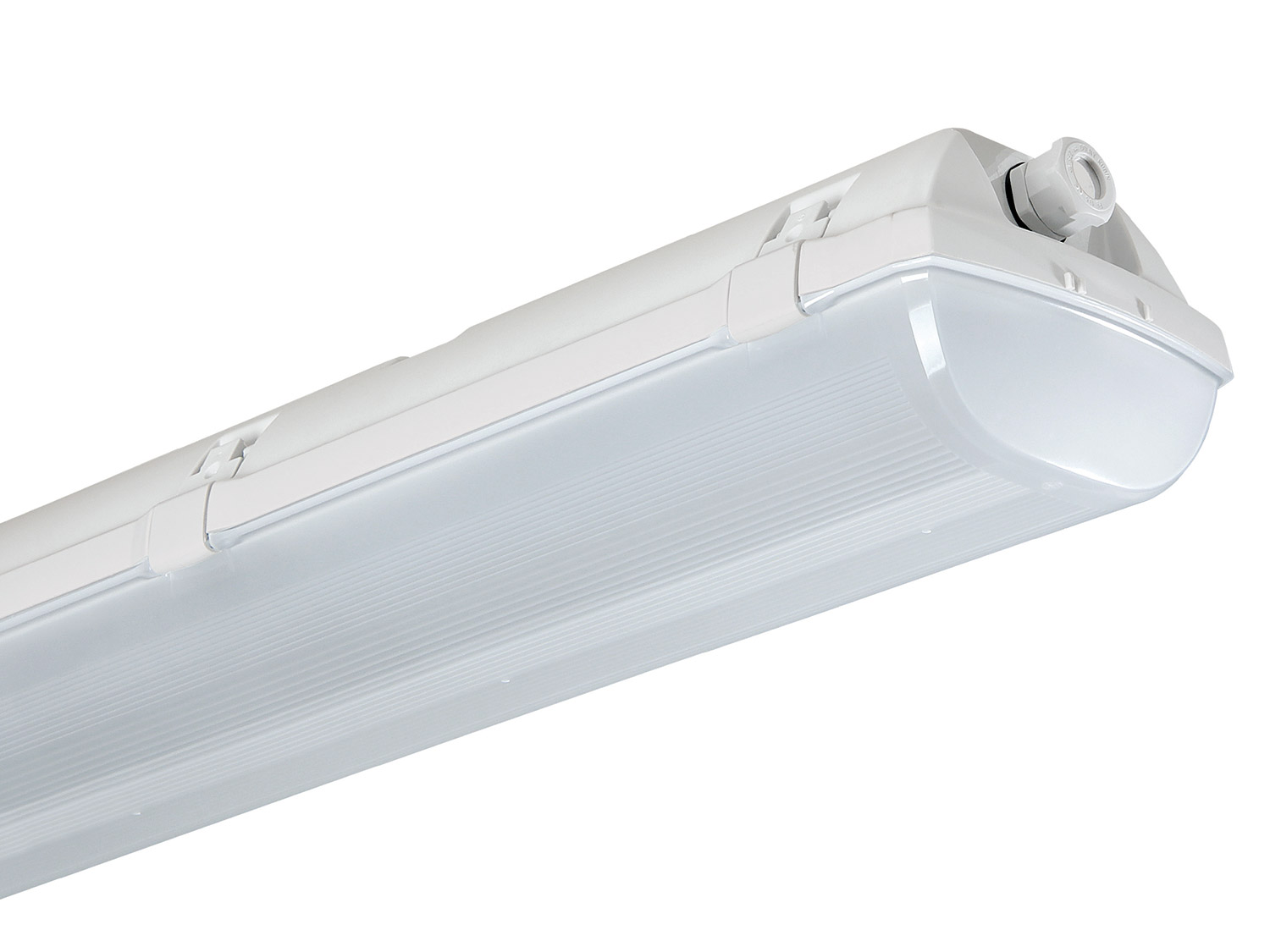

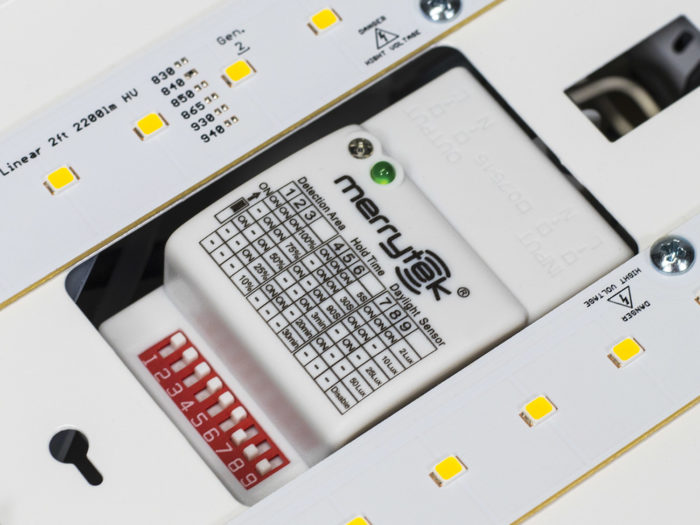

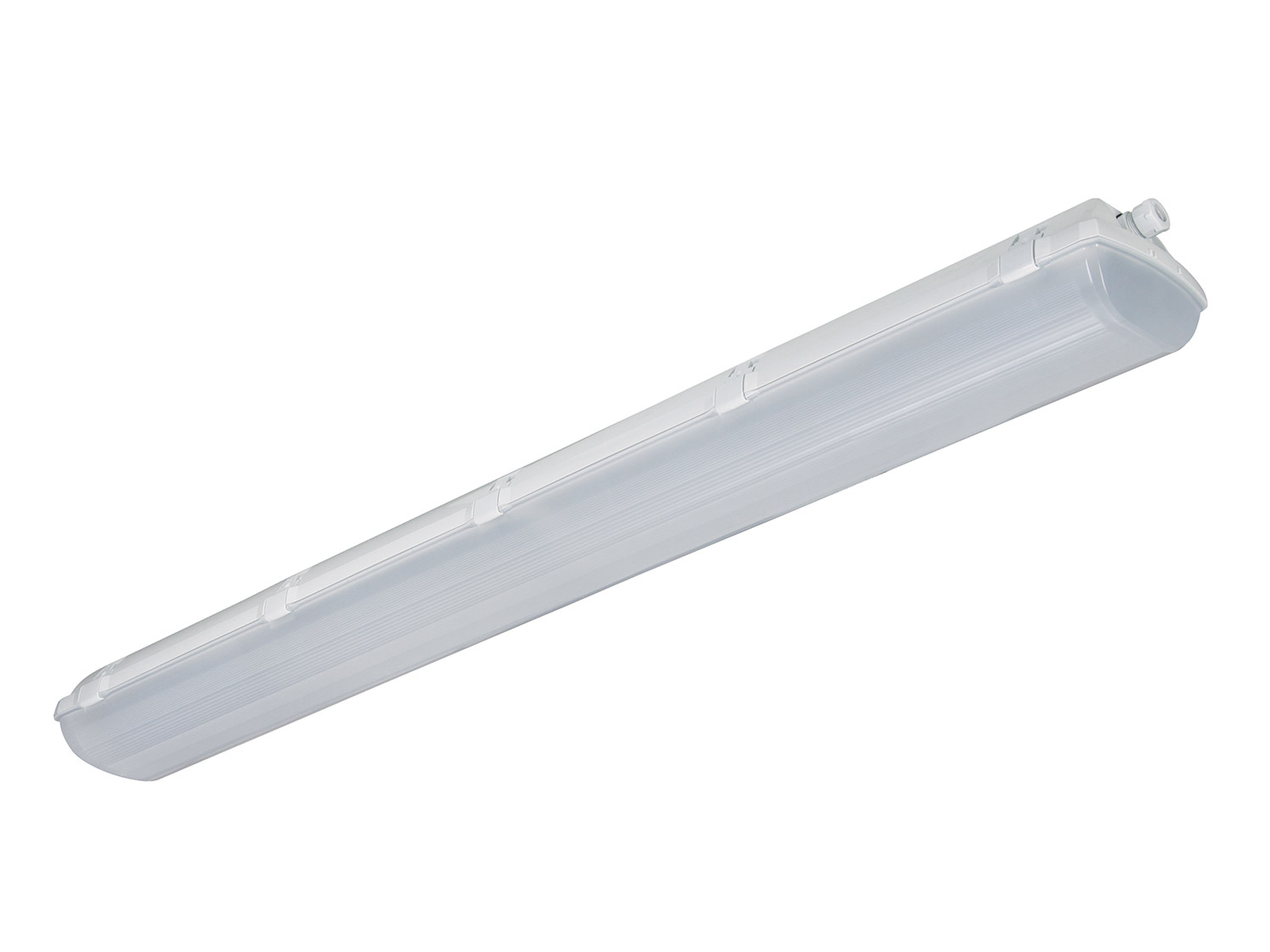

FORNAX SENSOR – plastic industrial LED light fitting with motion detector, with diffuser made of translucent polycarbonate.

The light fitting is suitable for industrial indoor and outdoor roofed spaces, warehouses, sports areas, workshops, garages, transport terminals, utility structures and laboratories without danger of explosion of gases, dust and combustible fumes.

The light fitting is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have the increased resistance against deformation and impact.

Sports facilities Industry Infrastructures Agricultural Interior lighting

Description

FORNAX SENSOR

Features:

  • From 16W to 104W
  • IP66 and IK10
  • Maximum ambient temperature: ta = 50 °C,
  • Lifetime: 50,000 hours / L90B10
  • Standard model – CRI > 80: 4000 K

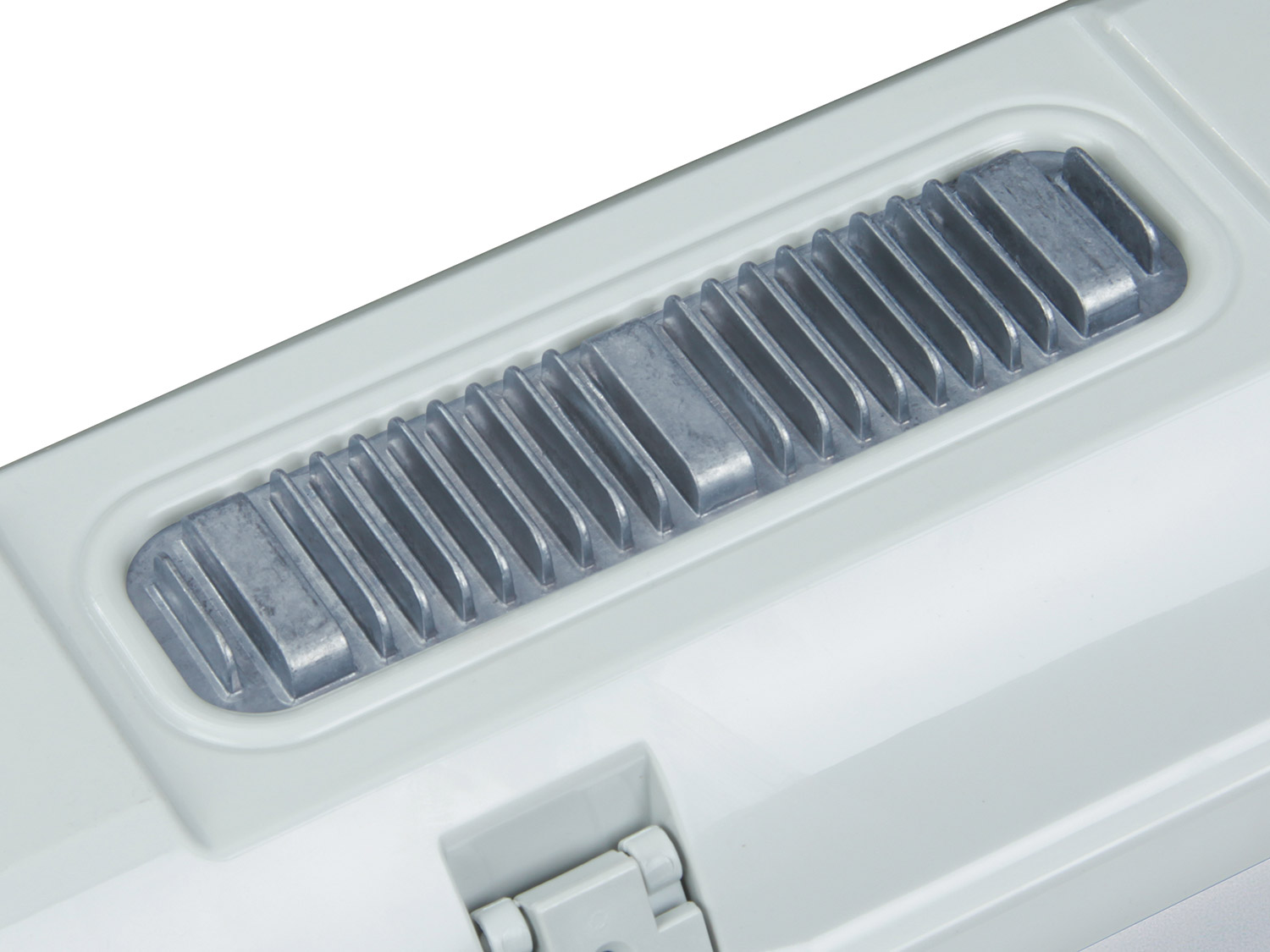

  • Body: grey polycarbonate with Al coolers (PC Al), UV stable, impact-resistant
  • Certification: ENEC, CB, HACCP, CE
  • The watt and lumen values can, in accordance with valid standards, vary by ± 7,5 %

Technical information:

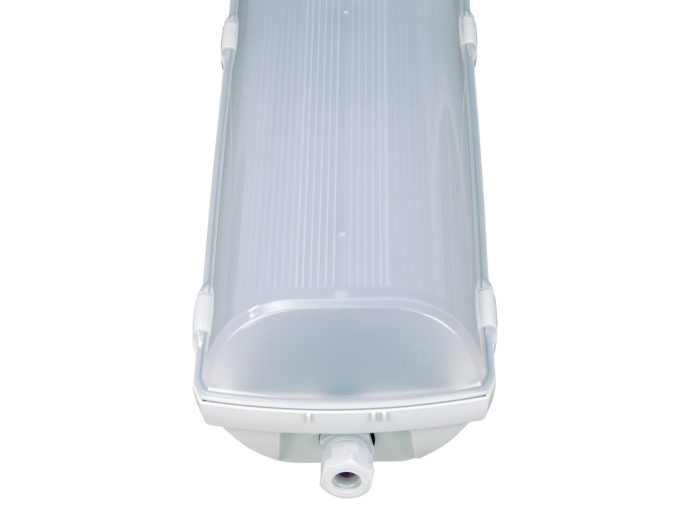

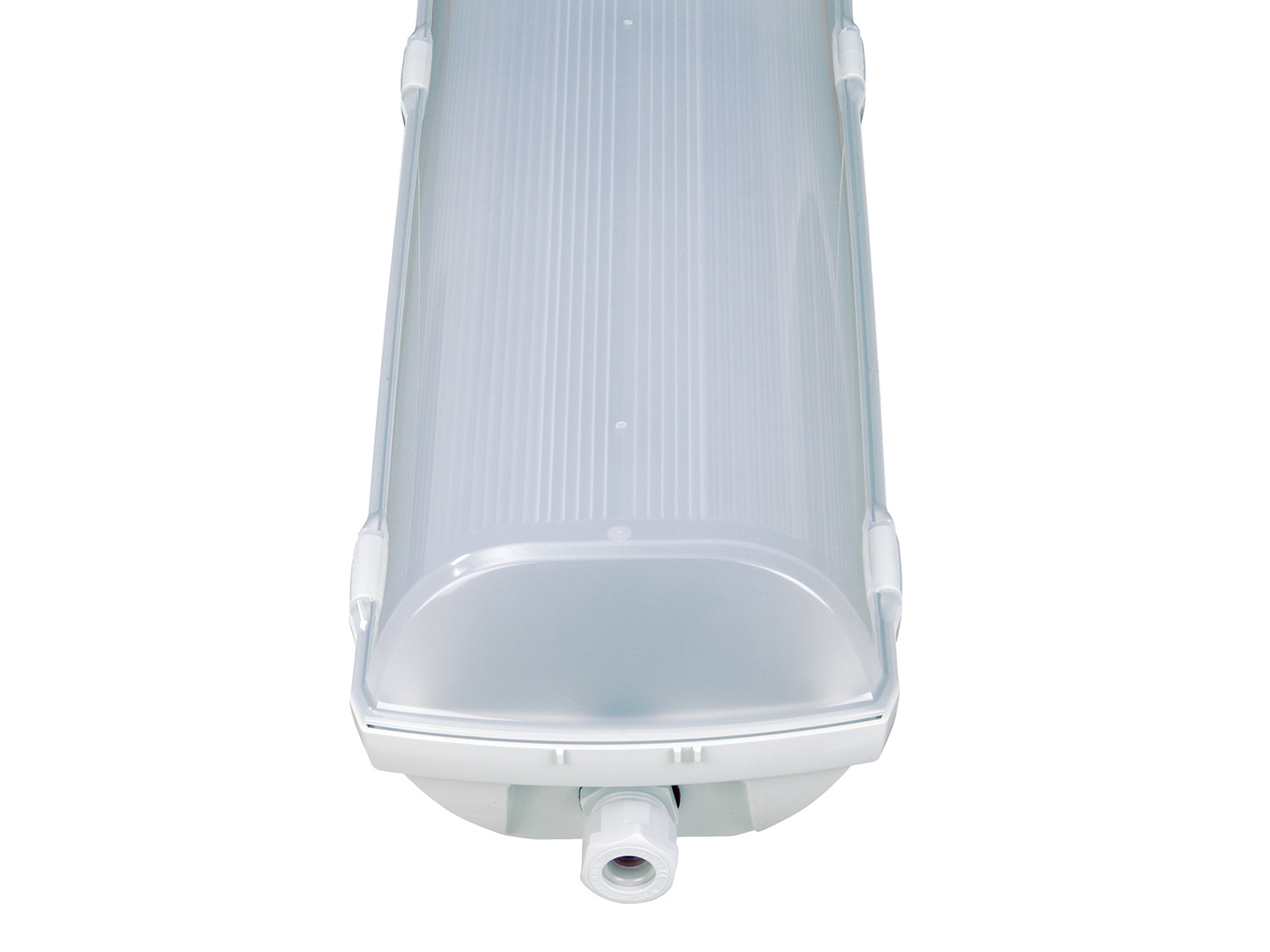

  • Diffuser: translucent polycarbonate (PC), UV stable, impact-resistant
  • Reflector: steel sheet, white color (RAL 9003)
  • Clips: polyamide + 15 % glass fiber or stainless steel + polyamide
  • Sealing: polyurethane (PUR), foamed body groove
  • Cable glands: screwed PG 13,5
  • Distance part: polyamide + 10 % glass fiber
  • Terminal block: screwless, three-pole (basic version)

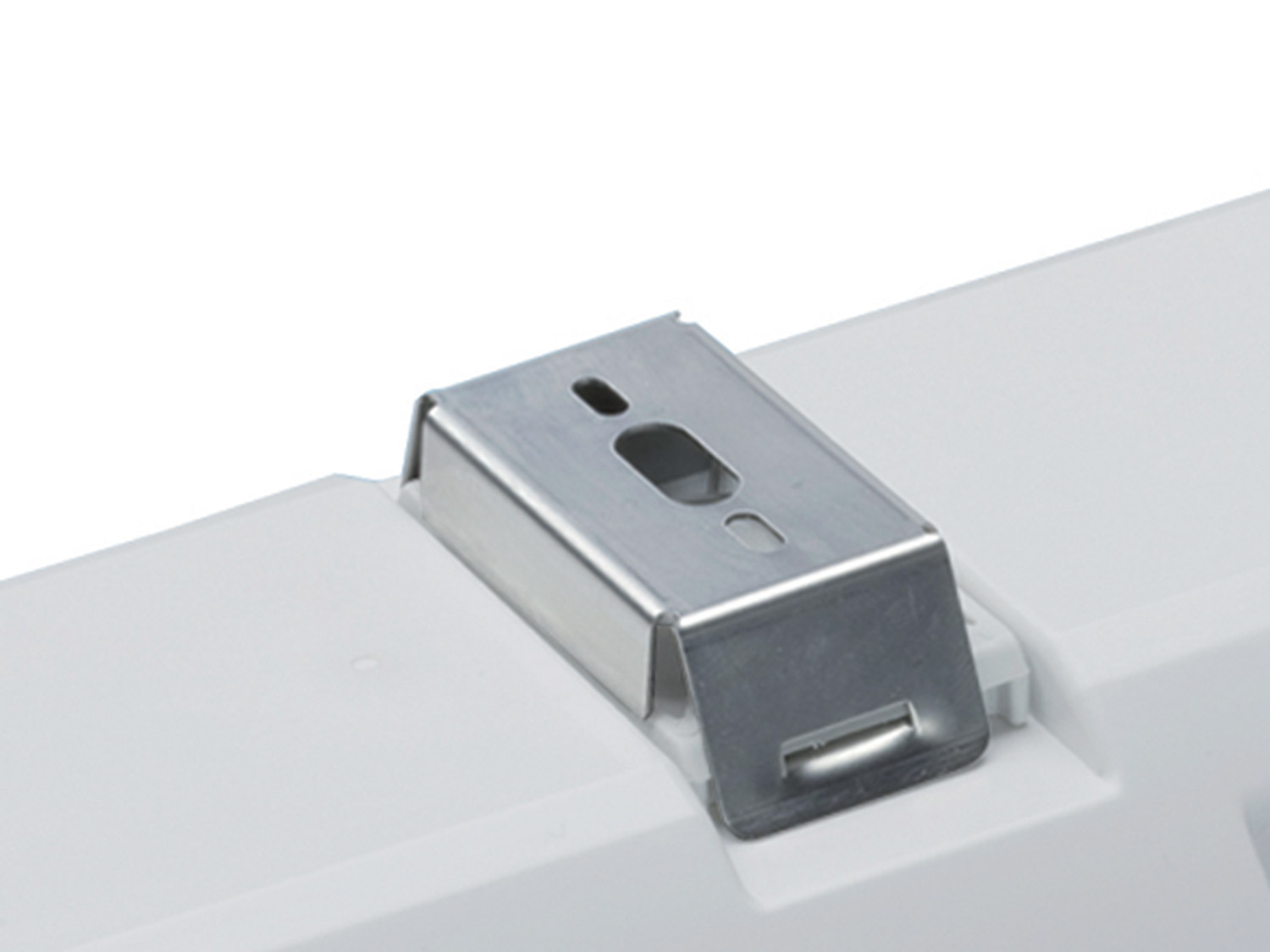

  • Installation options: attachment with the use of side hangers to the wall/ Directly to a ceiling or a wall with the use of screws and stainless brackets/ Suspension with the use of stainless hooks

Areas of application:

  • Industrial: Warehouses/ Food industry
  • Indoor: Commercial lighting/ Culture and education/ Staircases and corridors
  • Infrastructures: Stations and terminals/ Garages/ Tunnels
  • Agricultural: Farms and stables/ Mills and granaries
  • Sports grounds: Indoor sports grounds
 Type Ta. Max Luminous flux light fitting (lm) Power (W) Efficacy (lm/W) Net weight (kg) Luminaire length (mm)
FORNAX SENSOR 2600 50 2470 16 154 1.5 612
FORNAX SENSOR 3200 50 2920 19 154 1.5 612
FORNAX SENSOR 4400 45 4130 27 153 1.7 612
FORNAX SENSOR 5200 50 4840 31 156 2.9 1172
FORNAX SENSOR 6400 50 5880 37 159 2.9 1172
FORNAX SENSOR 8800 45 8190 51 161 3 1172
FORNAX SENSOR 12800 35 13160 84 157 3 1172
FORNAX SENSOR 6500 50 6000 38 158 3.8 1452
FORNAX SENSOR 8000 50 7290 46 158 3.9 1452
FORNAX SENSOR 11000 45 11330 71 160 3.9 1452
FORNAX SENSOR 16000 35 16500 104 159 3.9 1452
