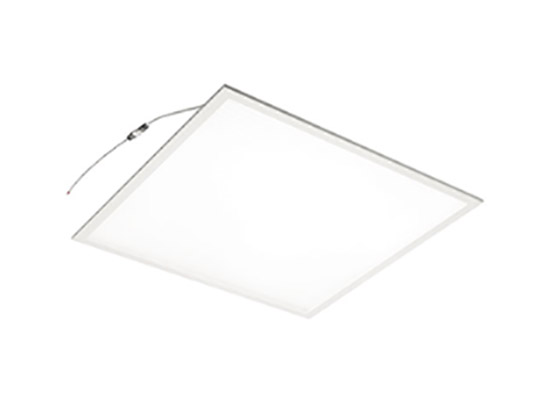

NORD

NORD is supplied with Micro Prismatic optic, with UGR19. This luminaire is an easy choice for applications with restricted void spaces, and retrofit applications, due to the flat luminaire design. It is easy to mount and suitable for all types of commercial applications areas, such as corridors or open plan offices.

Two luminous flux range variants 2800 or 3800 lm. For suspended ceiling grid measure of 600 and 625 mm.

With the optional accessories, both the pendant and the surface-mounted version are quick and easy to install.

Interior lighting

Description

Features:

  • Two power options: 24W and 32W
  • IP20
  • Operating temperature from -20°C to 40°C
  • Lifetime :50000h (L80B10 at Ta 25°C)
  • Body: steel sheet
  • Efficiency: 120 lm/W
  • UGR19 with Micro Prismatic optic
  • CRI > 80
  • MacAdam 4
  • Certification: CE, ROHS
  • The watt and lumen values can, in accordance with valid standards, vary by ± 7,5 %

Areas of application:

  • Indoor: Offices/ Healthcare/ Commercial lighting/ Culture and education/ Staircases and corridors

Type Ta. Max Luminous flux light fitting (lm) Power (W) Efficacy (lm/W) Net weight (kg)
NORD 60×60 2800 SNC 40 2710 24 115 2,33
NORD 60×60 2800 SNC 40 2860 24 120 2,33
NORD 60×60 2800 SNC 40 2860 24 120 2,33
NORD 60×60 3800 SNC 40 3620 32 120 2,33
NORD 60×60 3800 SNC 40 3870 32 120 2,33
NORD 60×60 3800 SNC 40 3870 32 120 2,33
NORD 60×60 3800 SNC TPA 40 3620 32 115 2,33
NORD 60×60 3800 SNC TPA 40 3870 32 120 2,33
